- Light, thin, short design for easy carrying and use in all positions
- Made of high strength alloy steel to extend strength
- Integral screw-rod designed hydraulic configuration without extra oil pumps and hoses
- Flat design for using in confined areas where standard cylinders will not fit
- Rising and retracting height can do spinner control precisely and its accuracy is up to 0.001inch
|

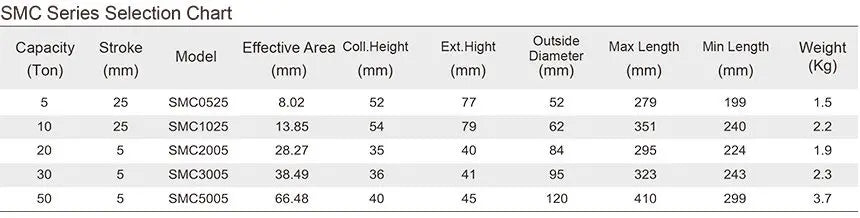

Capacity (Ton) |
Stroke (inch) |
Model |
Cylinder Effective Area (sq inch) |
Retract Height (inch) |
Advance Height (inch) |
Outside Diameter (inch) |
Max Length (inch) |
Min Length (inch) |
Weight (lbs) |
|
5 |
.98 |
SMC0525 |
1.24 |
2.05 |
3.03 |
2.05 |
10.83 |
7.68 |
3.3 |
|
10 |
.98 |
SMC1025 |
2.15 |
2.13 |
3.11 |
2.44 |
13.70 |
9.33 |
4.9 |
|
20 |
.20 |
SMC2005 |
4.38 |
1.38 |
1.57 |
3.31 |
11.38 |
8.58 |
4.2 |
|
30 |
.20 |
SMC3005 |
5.97 |
1.42 |
1.61 |
3.74 |
12.36 |
9.29 |
5.1 |
|
50 |
.20 |
SMC5005 |
10.30 |
1.57 |
1.77 |
4.72 |
15.79 |
11.54 |
8.2 |
